Steel Wall Panel SystemsContact Nucor Building Systems

Multiple wall panel options at NBS offer an attractive way to finish your building. Designed for function and visual appeal, our wall panels are available in many standard colors, with special colors and gauges available upon request. To add aesthetic value and improve your energy efficiency, NBS now offers attractive, affordable, and easy-to-install Insulated Panel Systems. Our Insulated Metal Panels (IMP) embody attractive styling with cutting edge energy efficiency.

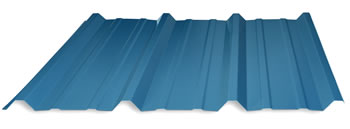

Nucor R-Panel

R-Panel

The Nucor R-Panel provides a strong, attractive wall panel. This panel is ideal for commercial, community, and industrial applications. R-Panel offers what most builders, contractors, and owners have come to expect from us in a versatile and attractive building system.    R-Panel Specifications

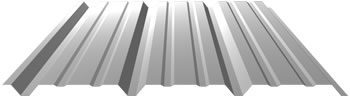

Nucor Reverse Classic Wall

Reverse R-Panel

The Nucor Reverse R-Panel offers a rigid surface designed to compress up to 4” of insulation without causing unsightly bulges at the girt. Fasteners are semi-concealed, allowing attention to focus on the beauty of the wall.   Reverse R-Panel Specifications

Nucor Accent Wall

A-Panel

The architectural features of the Nucor A-Panel make it ideal for fascias and decorative wall designs. The recessed fasteners provide a clean exterior appearance, and the deep rib configuration creates an attractive shadow pattern. Fasteners for the A-Panel are semi-concealed.   A-Panel Specifications



Translucent R Panel

Translucent Wall Panel

Allow natural light to filter into your building with our translucent wall panels. Available in all of the NBS standard profiles, simply replace regular wall panels, and are available in 5′-0″  & 10′-0″ nominal lengths as a standard. They are installed with self-drilling screws and 3/8″ grommet seal fasteners (field drilling required).



Nucor R-Panel

Nucor Liner Panel

Many times liner panels are specified to protect and to finish the building interior. The 28 gage panel is coated with a polyester paint system and is ideal for most liner conditions not exposed to weather. Where exposure to the effects of weather is a requirement or other colors are requested, specify 26 gage Nucor R-Panel.

IMP Panels

Nucor Insulated Metal Panels

One of the most sophisticated building products on the market today, insulated metal panels offer a clean, consistent, and high-quality appearance that will immediately add value to any building. Hidden fasteners give the panel a clean, aesthetically appealing appearance.
Insulated Panels
